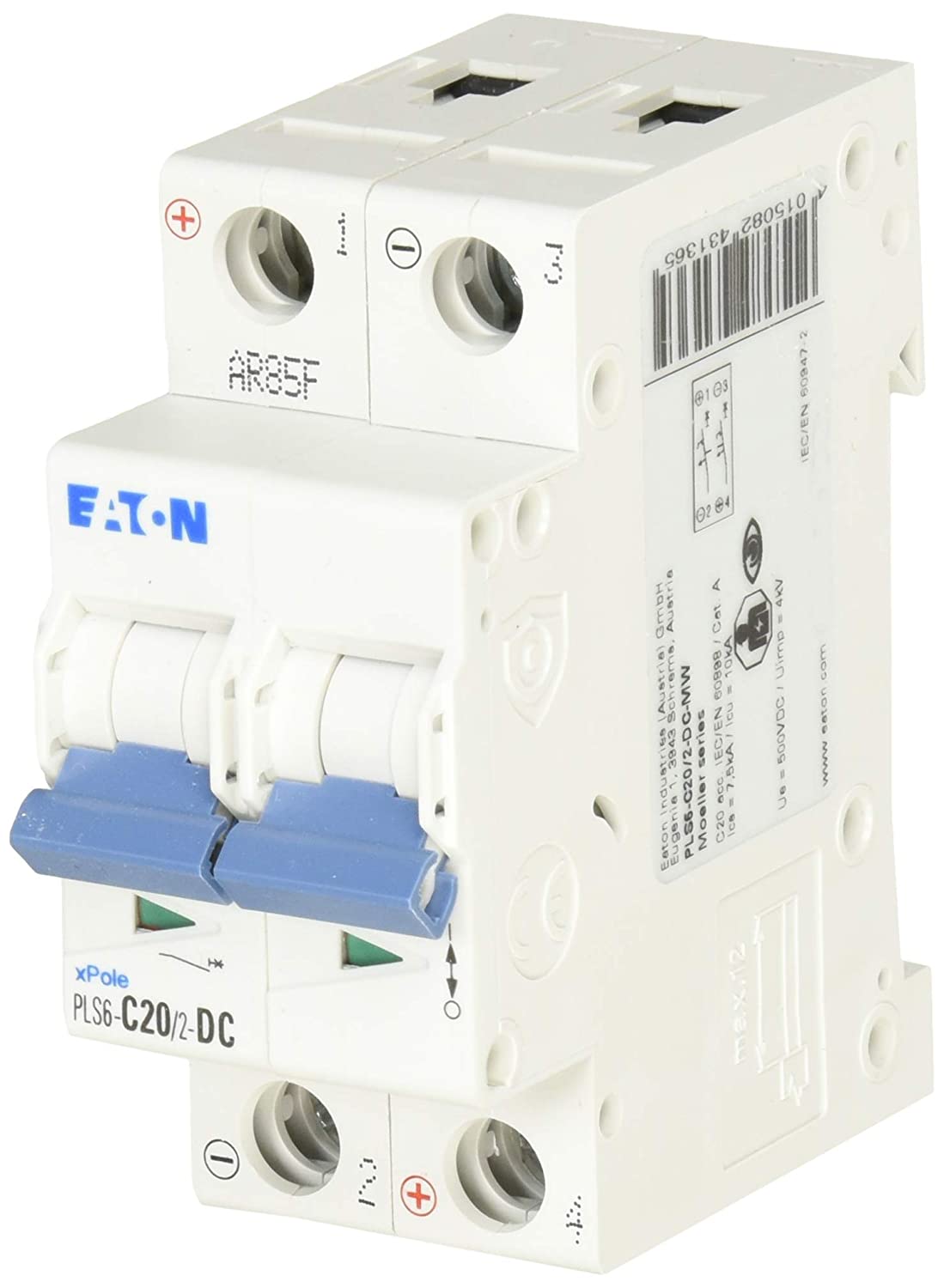

Interruptor Termomagnético Corriente Directa 20Ah – MINI

Interruptor Termomagnético Corriente Directa – 20Ah – MINI

Electric engineering, automation, process control engineering / Electrical installation, device / Miniature circuit breaker system (MCB) / Miniature circuit breaker (MCB)
(ecl@ss10.0.1-27-14-19-01 [AAB905014])
Release characteristic C
Number of poles (total) 2
Number of protected poles 2
Rated current A 20
Rated voltage V 220
Rated insulation voltage Ui V 440
Rated impulse withstand voltage Uimp kV 4
Rated short-circuit breaking capacity Icn EN 60898 at 230 V kA 0
Rated short-circuit breaking capacity Icn EN 60898 at 400 V kA 0
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V kA 10
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V kA 10
Voltage type DC
Frequency Hz 0 – 0
Current limiting class 3
Suitable for flush-mounted installation No
Concurrently switching N-neutral No
Over voltage category 3
Pollution degree 2
Additional equipment possible Yes
Width in number of modular spacings 2
Built-in depth mm 70.5
Degree of protection (IP) IP20
Ambient temperature during operating °C -25 – 75
Connectable conductor cross section multi-wired mm² 1 – 25
Connectable conductor cross section solid-core mm² 1 – 25
